CF Ceramic Disc Filter
CF Ceramic Disc Filter
Operating Principle
The ceramic plate immersed in the slurry tank, and the material cake layer formed on its surface under vacuum negative pressure and adsorbed by the plate capillary. The liquid passes through the inside of the plate and pipes to the vacuum tank and discharge out.The cake on the plates running by main roller to drying area, and continues to dehydrate under vacuum function. Then running to cake discharging area (without vacuum) to discharge the cake by ceramic scraper.After discharging, the ceramic plate running to the back washing area, the process water or compressed air will be enters to the ceramic plate inside by the back washing pipes, and washing the ceramic plate holes from inside to outside.After working for one shift, the ceramic plate should be washed by ultrasonic waves and combined with low concentration acid to ensure its efficiency.

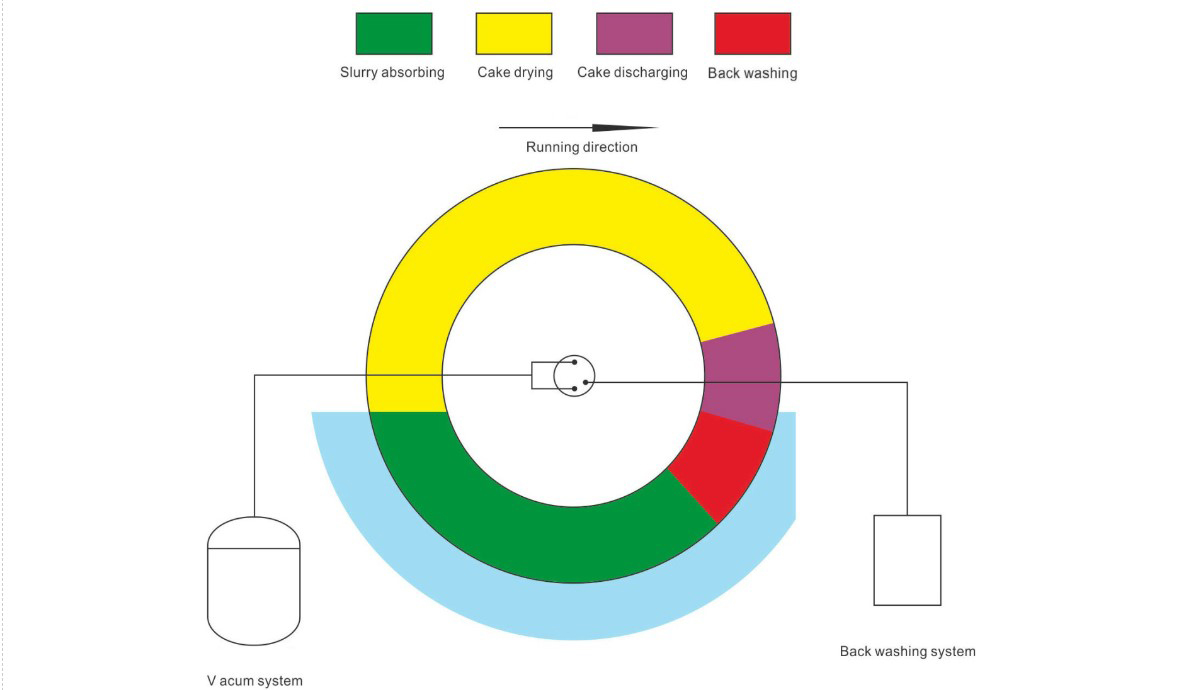

Process Flow Diagram
Equipment Features
● Low power consumption, low operation cost (low vacuum loss).
● Low cake moisture, low solids content in filtrate and can be reused.
● High automation, compact structure, small space occupied, and easy installation and maintenance.
Technical Specification
|
Model & area/m2 |
Filter disc/cycle |
Plate qty./pcs |
Installed power /kw |
Operating power/kw |
Main body（L×W×H）/m |
|
VSCF-1 |
1 |
12 |
3.5 |
2 |
1.6×1.4×1.5 |
|
VSCF-6 |
2 |
24 |
7 |
6 |
2.4×2.9×2.5 |
|
VSCF-15 |
5 |
60 |
11.5 |
8 |
3.3×3.0×2.5 |
|
VSCF-30 |
10 |
120 |
17.5 |
11.5 |
5.5×3.0×2.6 |
|
VSCF-48 |
12 |
144 |
34 |
24 |
5.7×3.1×3.0 |
|
VSCF-60 |
12 |
144 |
45 |
33 |
6.0×3.3×3.1 |
|
VSCF-80 |
16 |
192 |
63 |
47 |
7.3×3.3×3.1 |
|
VSCF-120 |
20 |
240 |
77 |
57 |
8.5×3.7×3.3 |
|
VSCF-144 |
12 |
144 |
110 |
89 |
8.0×4.9×4.7 |
It is widely used in concentrate and tailings dewatering of mining, ferrous metals, non-ferrous metals, rare metals, non-metallic and environmental protection sewage sludge dewatering and waste acid treatment, etc.

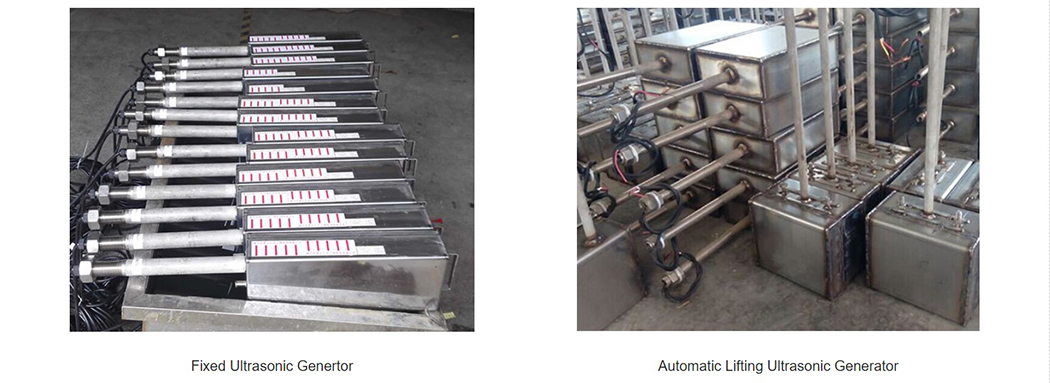

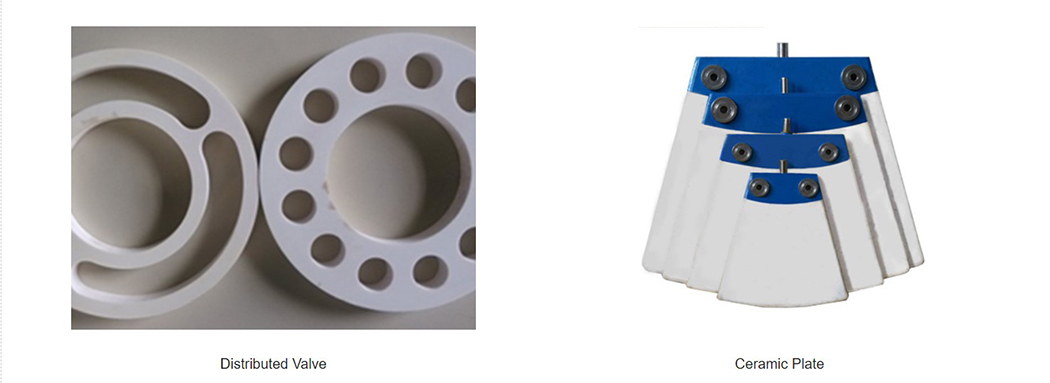

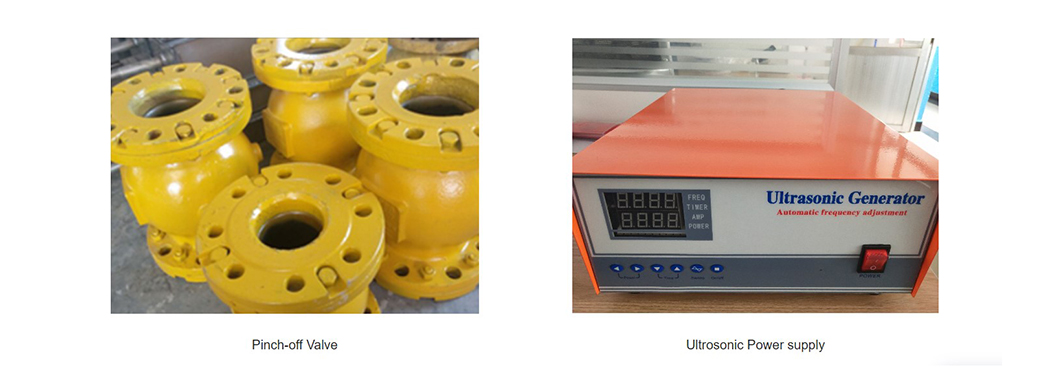

Equipment Main Spare Parts

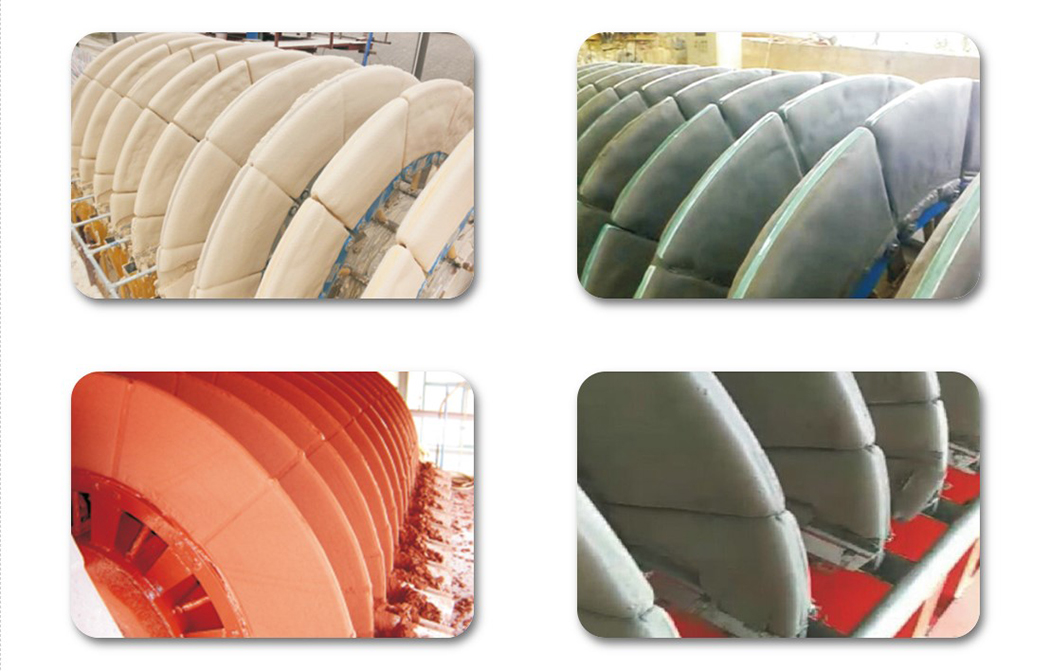

Using Site
