Impact Crusher with Newly Structure

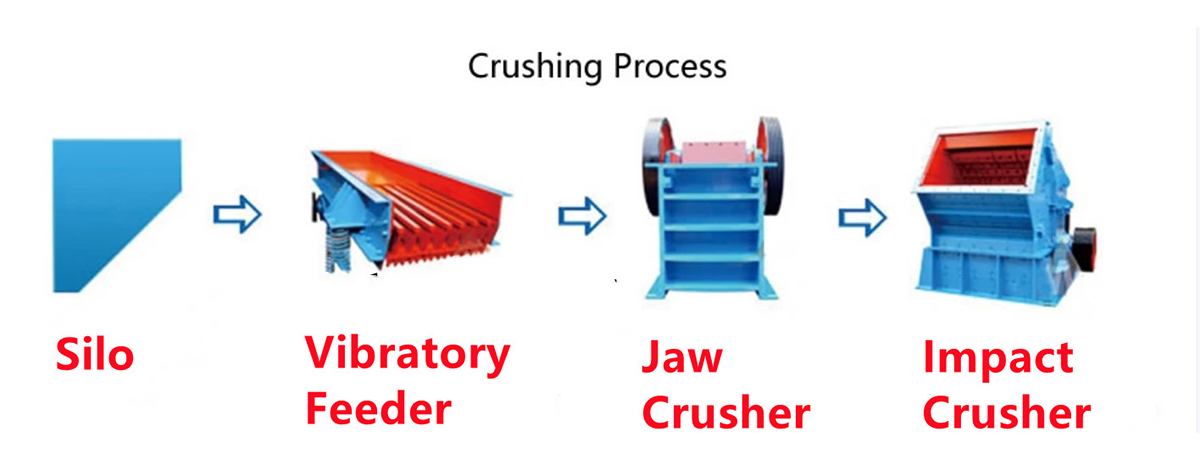

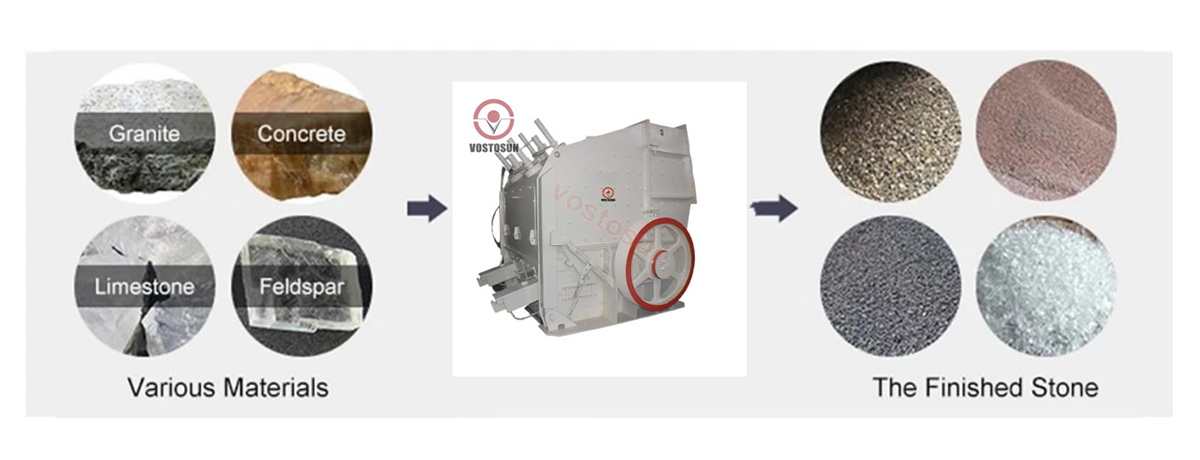

PF&PFV Series Impact Crusher are usually used as medium crushing machine after coarse crushing. It is capable of crushing mineral rocks with compressive strength up to 320 MPa, featuring with greater processing capability and finer discharging particles. The crushed products are in cubic shape with low flakes and no internal cracks. This type of equipment is preferable to be selected as the first choice for crushing fine quality stone materials used for highway, water conservancy, airport, civil construction and other industries.

CONTACT NOW

Product Detail

Product Tags

Main Features

1. The combination of multi crushing chambers can make the product in uniform particle sizes, which are suitable for crushing hard rocks;、

2. The bottom impact plate structure makes the crushed products smaller in cubic shape with no internal cracks;

3. These series have big feed opening which is more easily for disposing production lines;

4. New type of high alloy abrasion material makes the service life of blow bars, impact plates, and liner plates longer.

Technical Data

Model	Specification	Feeding opening Size (mm)	Feeding Size (mm)	Capacity (t/h)	Power (kW)
PF-1007	φ1000×700	400×730	≤250	15-60	37
PF-1010	φ1000×1050	400×1080	≤300	50-90	75
PF-1210	φ1250×1050	400×1080	≤300	70-130	110
PF-1212	φ1250×1200	400×1250	≤300	70-140	132
PF-1214	φ1250×1400	400×1430	≤300	90-180	132
PF-1315	φ1300×1500	680×1520	≤350	120-250	200
PF-1320	φ1300×2000	680×1570	≤500	160-350	280
PFV-1010	φ1000×1050	400×1030	≤200	35-60	75
PFV-1210	φ1250×1050	570×1030	≤250	70-140	110
PFV-1214	φ1250×1400	570×1430	≤250	90-190	160
PFV-1315	φ1300×1500	625×1530	≤300	150-280	200
PFV-1380	φ1300×1800	625×1830	≤300	220-350	250
PFV-1415	φ1400×1500	800×1530	≤300	280-350	250
