Mobile Crushing and Screening Plant

Mobile crushers are often referred to as ‘mobile crushing plants’. They are track-mounted or wheel-mounted crushing machines which, thanks to their mobility, can maximize productivity and reduce operating costs – while increasing safety and reducing environmental impact.

CONTACT NOW

Product Detail

Product Tags

Introduction

The concept of mobile and semi-mobile crushers has been around for a long time, but for years many machines were very heavy and moving them required thoughtful planning. As result, the crushers that were supposed to be mobile were seldom relocated and tended stay put in permanent facilities.

Nowadays, the weight of mobile crushers has decreased considerably, and crushing as well as mobility properties improved notably. Mobility is not substitute for effective crushing anymore, and tracked/wheeled mobile crushers meet the same basic criteria as stationary plants.

The ability to crush also the largest lumps to the desired cubicity at the desired rate are all ‘must-have’ rather than ‘nice-to-have’ attributes. The basic components of mobile crushers are almost the same as for stationary ones, but with the added advantage of complete mobility – even up slopes as steep as 1:10 incline.

Application of Mobile Crusher

The Mobile Crusher is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce required size and output for consumers.

Technical Data

1.Mobile Jaw Crusher Plant
Popular mobile jaw crushers are generally utilized as primary crushers that reduce the material to smaller sized for further processing.

Model	Length L1(mm)	Width B1(mm)	Height H1(mm)	Max.Length L2(mm)	Max. Height H2(mm)	Max. Width (mm)	Height of Belt conveyor (mm)	Wheel	Weight
VS938E69	12500	2450	4000	13200	4600	3100	2700	Paratactic double axles	42
VS1142E710	14000	2450	4800	15000	5800	3300	2700	Paratactic tri- axle	55
VS1349E912	15500	3000	4800	17000	5800	3500	3000	Paratactic quarter- axle	72
Equipment Specification
Model	Feeder Model	Jaw crusher Model		Belt Conveyor Model		Extended conveyor	Generator	Capacity	Power
Model	Feeder Model	Jaw crusher Model		Belt Conveyor Model		Extended conveyor	Generator	(t/h)	Power
VS938E69	GZD380X960	PE600X900		B650X7000mm		adapting	adapting	70-150t/h	91.5KW
VS1142E710	GZD4200X1100	PE750X1060		B800X9000mm		adapting	adapting	80-200t/h	134KW
VS1349E912	GZD4900X1300	PE900X1200		B1000X11000mm		adapting	adapting	150-300t/h	146KW

2. Mobile Impact Crusher Plant
Mobile impact crushers are wide-ranging crushing machines that fall into two distinctive categories according to the crushing technology they use.
Mobile HSI crushers have a horizontal impact crushing unit and they are used as primary, secondary, or tertiary crushers. Mobile VSI crushers, in turn, are equipped with vertical shaft impact crushing unit, and they are extremely efficient in the last stage of the crushing process, producing precisely shaped cubical end products.

Model

Vibrating Feeder

Crusher Model

Magnet

Frame Chassis

Capacity(t/h)

Dimension

(L*W*H)
(mm）

Hydraulic System

VSF1214

ZSW380X96

6VX1214

Magnet

double axle

80-200

12650X4400X4100

Hydraulic lifter

VSF1315

ZSW110X420

6VX1315

Magnet

triaxial

150-350

13500X4500X4800

Hydraulic lifter

3. Mobile Cone Crusher Plant
Mobile cone crushers are traditionally used as secondary, tertiary, and quaternary crushers. However, if the grain size of the processed material is small enough by nature, then they can also operate at the first stage of the crushing process.

Model

Vibrating Feeder

Primary Crusher

Secondary

Vibrating Screen

Iron remover

Qty. of belt

Number of Axles

Capacity

(t/h)

Hydraulic system

VSM-4 C46

ZSW3090

PE400*600

PY-900

3YA1237

RCYD(C)-6.5

50-100

Hydraulic lifter

VSM-4 C80

ZSW3090

6CX80

CSV110

3YA1548

RCYD(C)-6.5

50-120

Hydraulic lifter

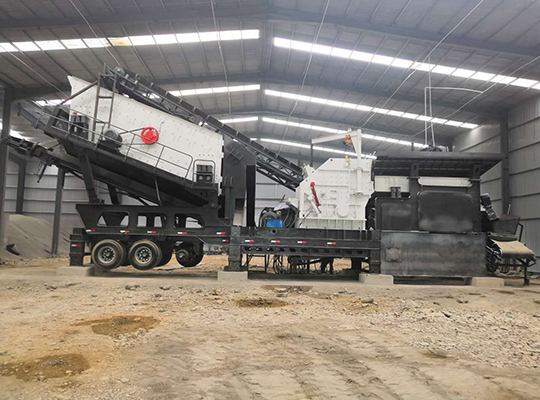

Combined Mobile Crushing Plant
The combined mobile crusher plant is equipped with an vibrating feeder, primary or secondary crusher and an effective vibrating screen and related belt conveyors. In addition to the space-saving installation, the manufacturer offers a clearly increased productivity to the operator. Furthermore, the power consumption will be largely decreased by using the combined mobile crusher plant.

Model	Crusher	Feeder	Screen	Magnetic Separator	Number of Axles	Capacity (t/h)	Dimension *(LWH)* （mm）
VSC-3 F1010	6VX1010	ZSW300X90	3YA1548	RCYD(C)-8	3	100-200	18150x4400x7320
VSC-3 F1210	6VX1210	ZSW380X96	3YA1848	RCYD(C)-8	3	140-285	19600x5500x7590
VSC-3 F1214	6VX1214	ZSW380X96	3YA1860	RCYD(C)-8	3	200-400	21650x8200x8600
