Wheel Type& Screw Type Sand Washer
Wheel Type& Screw Type Sand Washer
Features
Novel sealing structure
Adjustable overflow weir
Reliable transmission system
Technical Data
LSX Screw Type Sand Washer
|
Model |
LSX-920 |
2 LSX -920 |
LSX -1120 |
2 LSX -1120 |
|
Number of Screw (pcs) |
1 |
2 |
1 |
2 |
|
Screw Diameter(mm) |
915 |
915 |
1115 |
1115 |
|
Tub Length(mm) |
7585 |
7585 |
9750 |
9750 |
|
Max. Feeding Size(mm) |
≦10 |
≦10 |
≦10 |
≦10 |
| Capacity(t/h) |
100 |
200 |
175 |
350 |
|
Screw Speed(rpm) |
21 |
21 |
17 |
17 |
| Motor Power(kw) |
11 |
11×2 |
15 |
15×2 |
|
Water Consumption (t/h) |
10-80 |
20-160 |
20-150 |
40-300 |
|
Weight(t) |
6.2 |
11.5 |
10.9 |
17.8 |
|
Overall Dimension(mm) |
8420×2950×1930 |
8420×3765×2030 |
10970×3945×4720 |
10970×5250×4720 |
XSD Wheel Type Sand Washer
|
Model |
Diameter（mm） |
Max. Feeding Size(mm) |
Capacity (t/h) |
Power (kw) |
Overall Dimension(mm) |
Water requirement (t/h) |
|
XSD-2610 |
2600 |
≦10 |
20-50 |
7.5 |
3254*2060*2622 |
10-30 |
|
XSD-2816 |
2800 |
≦10 |
30-60 |
11 |
3810*2820*2883 |
15-40 |
|
XSD-3016 |
3000 |
≦10 |
70-120 |
15 |
3800*2686*2800 |
15-60 |
|
XSD-3620 |
3600 |
≦10 |
80-150 |
18.5 |
4456*2479*3688 |
20-100 |
Note: Specifications are subject to change without further notice.

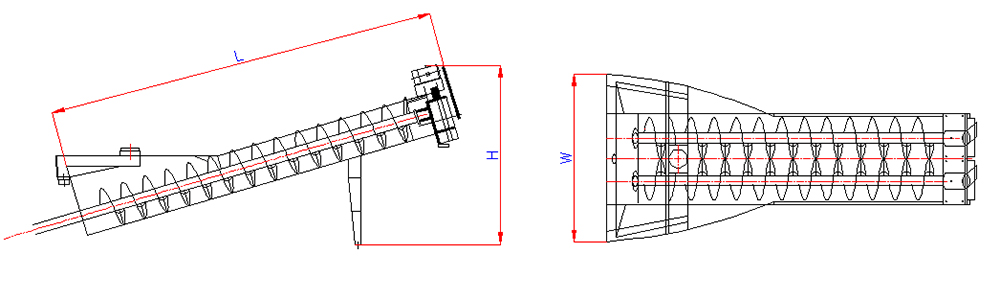

Structural Sketch

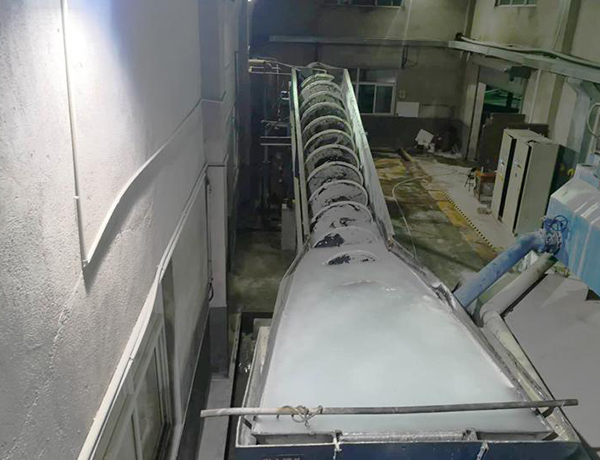

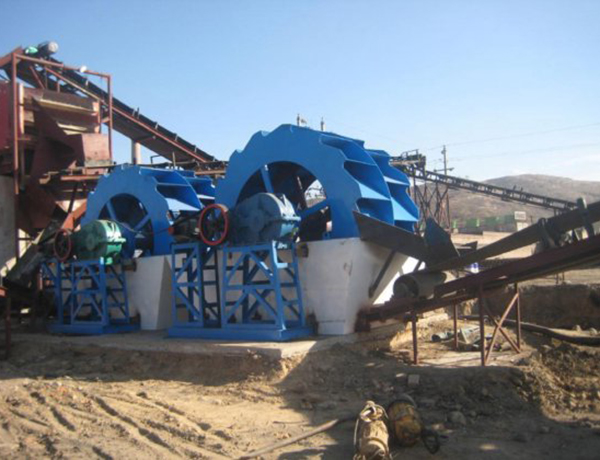

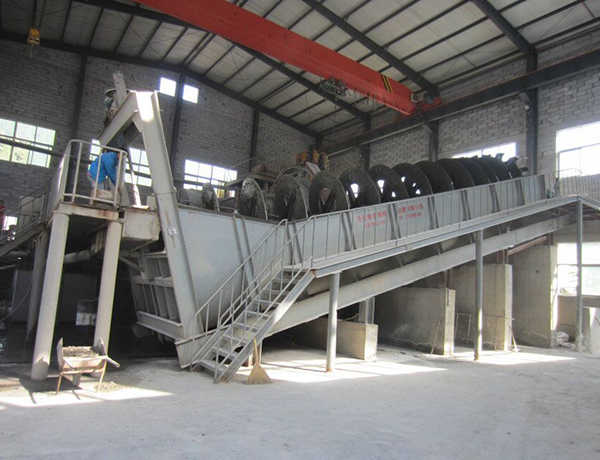

Working Sites’ Pics
